1. Core System Structure & Fault Classification of Allen-Bradley Motor Systems

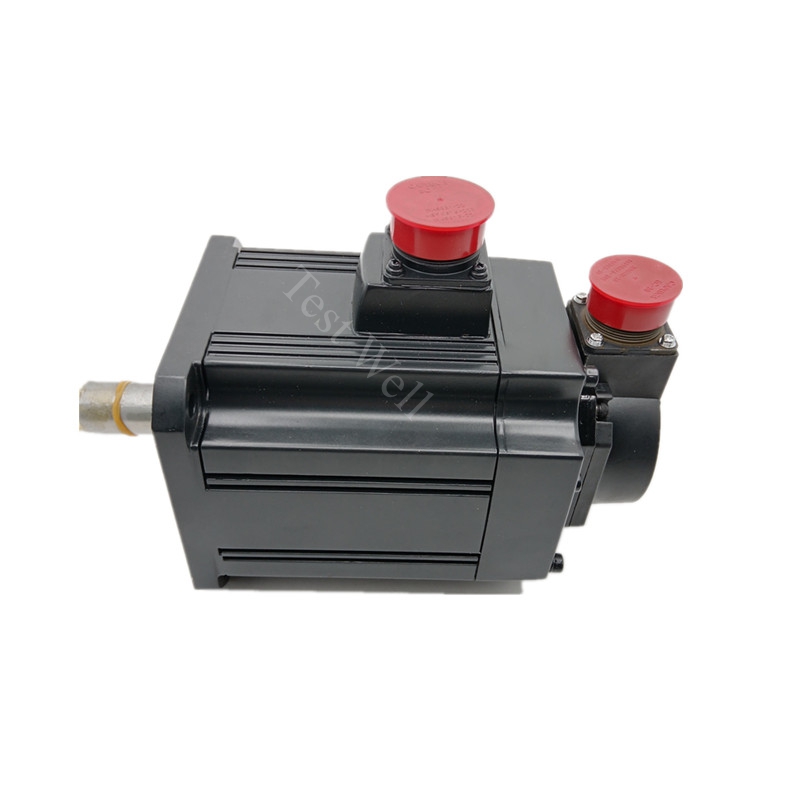

A complete Allen-Bradley closed-loop motion control system includes three key functional assemblies: motor mechanical body, integrated absolute encoder feedback unit, and matching Kinetix/PowerFlex drive amplifier.

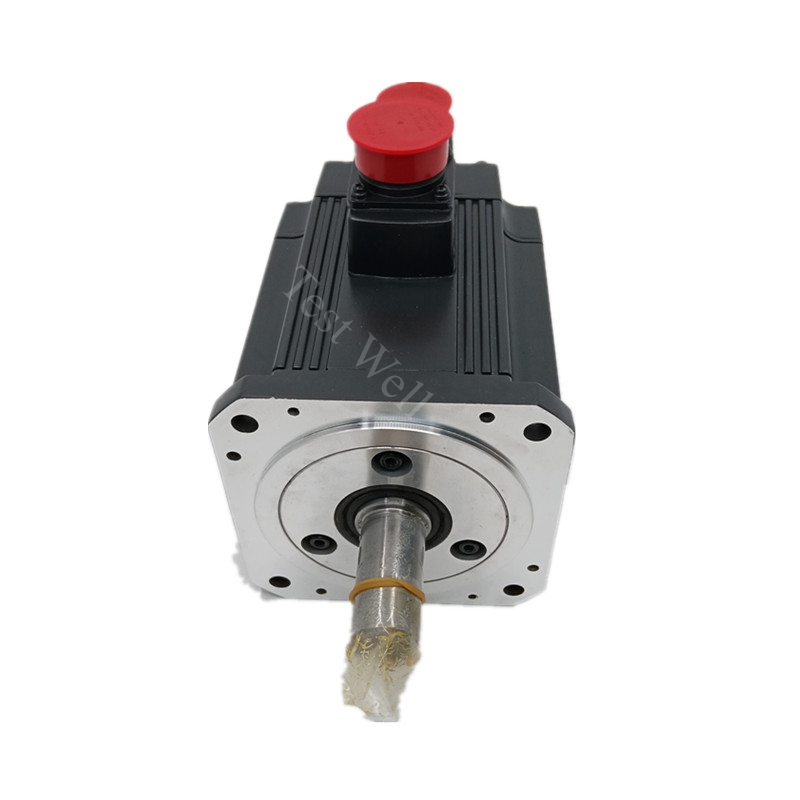

1. Motor Mechanical Assembly: Stator winding, rotor shaft, front/rear precision bearings, shaft oil seal, built-in cooling fan, and embedded thermal temperature sensor. This section generates thermal overload, vibration, grinding noise, and locked-rotor mechanical faults.
2. Hiperface DSL Absolute Encoder (Rear Shaft Mounted): Transmits real-time position, speed, and commutation signals to the drive via dedicated feedback cables. Absolute encoders rely on backup lithium batteries to retain axis zero origin after full power loss, triggering low-voltage and communication loss alarms once cables or encoder hardware degrade...
3. Servo / VFD Drive Amplifier: Receives Logix PLC motion commands and encoder feedback signals to form closed-loop control. All motor-side abnormal conditions convert to numeric lettered fault codes displayed on the drive HMI or Studio 5000 software diagnostic screen.

All Allen-Bradley motor related industrial faults fall into four clear categories for targeted troubleshooting:

1. Thermal & Overload Faults: E004 motor overtemperature, E006 continuous overload, locked rotor, blocked cooling airflow, sustained heavy cutting/conveyor load
2. Encoder Feedback & Battery Faults: S45 DSL communication failure, absolute encoder low battery warning, broken feedback cable, loose MF encoder connector, random axis positioning drift
3. Mechanical Bearing & Load Faults: Abnormal grinding vibration noise, coupling misalignment, shaft seal oil leakage, mechanical axis jamming, rotor imbalance
4. Wiring & Electrical Circuit Faults: UVW power cable short circuit, loose drive MF power terminals, EMI noise interference, phase imbalance on induction motors

2. Fast Preliminary Fault Diagnosis via Operating Symptoms & Drive Fault Codes

Kinetix servo drives display E-series numeric fault codes, while PowerFlex inverters show F-series codes for induction motor faults. Technicians can classify fault sources instantly before disassembly without advanced testing equipment:

Typical Allen-Bradley Motor Failure Manifestations

1. Drive shows E004 overtemperature alarm, motor housing extremely hot after short run cycles → Blocked cooling passages, failed cooling fan, or sustained heavy overload
2. Machine loses zero origin after every power cycle, drive pops low encoder battery warning → Depleted absolute encoder backup lithium battery
3. Kinetix drive triggers S45 feedback communication fault, axis stalls randomly during movement → Damaged Hiperface DSL feedback cable or contaminated encoder optical chip
4. Axis generates constant metal grinding vibration during reciprocating travel → Worn motor bearings or misaligned mechanical coupling
5. Unstable machining dimensions, random axis offset without fixed fault codes → Poor cable shielding, electromagnetic interference, or dirty encoder optical disk
6. E006 overload alarm activates repeatedly during production runs → Mechanical binding, overloaded payload, or mismatched motor rated current parameters

3. Most Common Allen-Bradley Motor Related Drive Fault Codes & Step-by-Step Repair Solutions

Combined with official Rockwell Kinetix/PowerFlex service manuals and high-frequency field workshop failure cases, we organize core fault codes, root causes, and standardized repair steps for VPL/MPL/TL servo and NEMA induction motor lines.

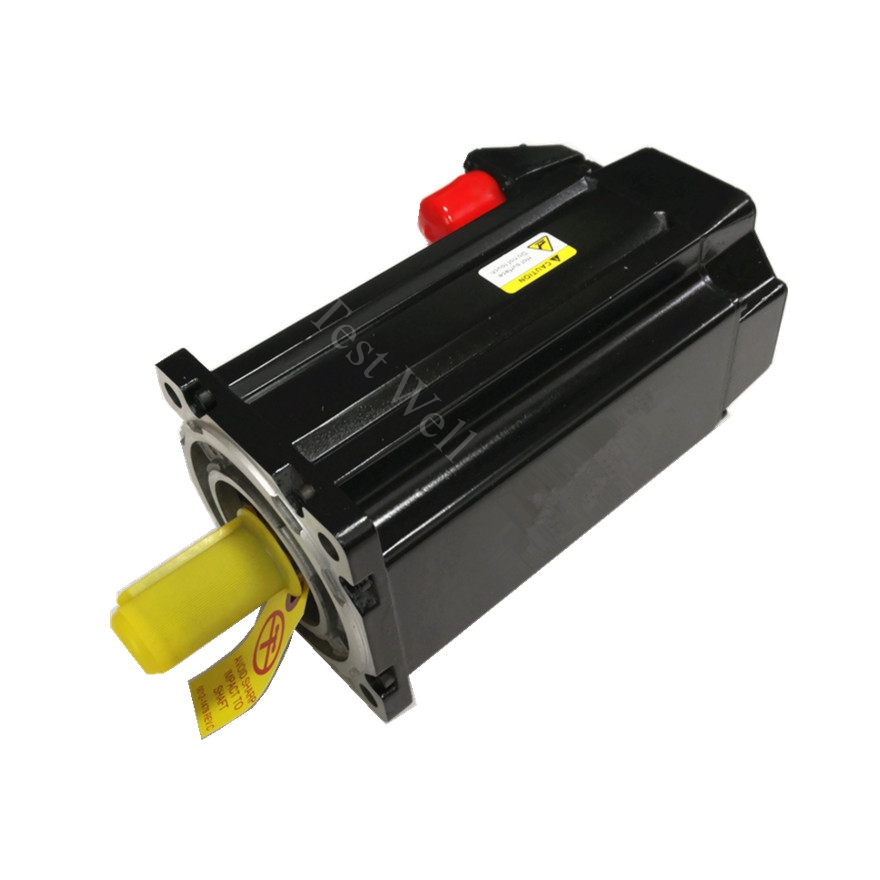

3.1 E004 Motor Overtemperature Fault (Most Frequent Servo Motor Alarm)

Fault Manifestations: Kinetix drive red fault LED illuminates, Studio 5000 diagnostic screen displays E004; axis automatically derates speed or trips fault state, internal thermal sensor reading exceeds 130°CManualsLib. Root Causes:

• Long-term operation above the motor continuous torque rating from heavy payload or tight mechanical guides
• Motor cooling fan seized, broken, or air intake vents clogged with metal dust, coolant sludge, and workshop debris
• Damaged embedded thermal sensor inside the motor rear housing
• Ambient cabinet temperature exceeding 40°C with no forced ventilation Repair Steps:

1. Execute full lockout-tagout (LOTO), cut main machine power, and wait a minimum of 30 minutes for complete motor cooling before inspection.
2. Remove motor rear cooling cover, clean all blocked air channels with low-pressure dry compressed air; avoid high-pressure air that scratches encoder optical components.
3. Manually rotate the cooling fan blade; replace genuine Rockwell matching cooling fan assembly if grinding noise or binding occurs.
4. Disconnect mechanical coupling and run motor no-load; if the E004 fault disappears, troubleshoot tight ball screws, seized linear guides, or overloaded workpieces.
5. Adjust motion profile acceleration/deceleration and feed speed parameters in Studio 5000 to reduce sustained heavy torque cycles.
6. If overtemperature persists under no-load conditions, replace the complete servo motor (thermal sensors are integrated non-separably inside the motor housing).

3.2 E006 Motor Continuous Overload Fault

Fault Manifestations: Drive logs E006 overload warning after several minutes of continuous movement; motor draws excessive RMS current, axis speed slows automaticallyManualsLib. Root Causes:

• Mechanical axis jamming, overloaded conveyor payload, or excessive cutting depth on CNC equipment
• Mismatched motor rated current parameter set incorrectly in drive configuration
• Failed auto-tune identification during initial machine commissioning
• Long-term operation above 100% motor service factor rating Repair Steps:

1. Decouple the motor from mechanical transmission and test no-load rotation to isolate load-side blockages.
2. Clear mechanical obstructions and apply high-temperature industrial lubricant to bearings, ball screws, and linear guides.
3. Update motor nameplate rated current, torque, and inertia parameters inside Studio 5000 drive configuration.
4. Perform full rotating motor auto-tune to calibrate drive loop gains and current protection thresholds.
5. Optimize production cycle motion profiles to eliminate extended full-torque operation periods.

3.3 S45 Hiperface DSL Encoder Feedback Communication Fault

Fault Manifestations: Kinetix drive displays S45 feedback comm error, axis cannot home or completes random emergency stops; intermittent loss of position tracking during high-speed travelIndustrial.... Root Causes:

• Damaged DSL feedback cable from repeated drag-chain bending, cracked shielding, or broken internal conductors
• Loose, oxidized pins on the MF encoder connector at the drive or motor rear housing
• Contaminated encoder optical disk covered in cutting fluid, metal powder, and oil mist
• Outdated drive firmware with known DSL communication bugs Repair Steps:

1. Power down the system, unplug and re-seat both motor-side and drive-side MF feedback connectors; clean corroded pin terminals with isopropyl alcohol wipes.
2. Perform continuity testing on the feedback cable with a multimeter; replace genuine Rockwell Hiperface DSL cables if open/short circuits are detected.
3. Carefully disassemble the motor rear encoder cover and wipe the optical disk surface with lint-free dry cloth to remove debris contamination.
4. Upgrade Kinetix drive firmware to the latest Rockwell official compatible version to resolve DSL communication software defects.
5. Separate high-power UVW motor cables and low-signal feedback cables with a minimum 30cm spacing to eliminate EMI noise interference.

3.4 Absolute Encoder Low Battery & Position Data Loss Fault

Fault Manifestations: PLC/HMI displays low encoder battery warning on every machine power-up; all axis zero origin offsets reset after shutdown, leading to inconsistent workpiece machining dimensions. Root Causes:

• Absolute encoder dedicated lithium backup battery end-of-life (standard service life 12–24 months)
• Loose battery holder wiring terminals inside the electrical cabinet
• Unstable 5V encoder supply voltage from damaged feedback cable power conductors Repair Steps:

1. Keep the full automation system powered ON during battery hot-swap to prevent permanent loss of axis origin coordinate data.
2. Remove the exhausted old battery and install a genuine Rockwell matching replacement lithium battery pack.
3. Tighten all battery holder terminals and inspect feedback cable power lines for abrasion or open circuits.
4. Complete full axis homing calibration after battery replacement, back up all workpiece offset and motion parameter files to PC storage immediately.
5. Schedule quarterly battery voltage testing to avoid unplanned production stops from sudden position data loss.

3.5 Abnormal Bearing Vibration & Grinding Noise (No Fixed Drive Fault Code)

Fault Manifestations: Motor emits continuous metal grinding or rattling noise during rotation; obvious mechanical vibration creates inconsistent part tolerances over long production runs. Root Causes:

• Worn front/rear precision bearings after thousands of high-cycle reciprocating movements
• Deteriorated or insufficient high-temperature bearing lubricating grease
• Misaligned coupling between motor rotor shaft and ball screw/transmission
• Aged shaft oil seal allowing cutting fluid and metal dust to seep into the bearing cavity Repair Steps:

1. Lock out all power, manually rotate the motor shaft by hand; rough, jerky rotation confirms bearing wear failure.
2. Disassemble motor front and rear end caps, extract worn bearings, and install original Rockwell precision bearing overhaul kits.
3. Refill bearing cavities with Rockwell specified high-temperature resistant lubricating grease.
4. Replace degraded shaft oil seals to block liquid and particulate contamination from internal motor components.
5. Re-calibrate coupling concentricity to eliminate eccentric vibration during high-speed axis movement.

3.6 Induction Motor Phase Imbalance & Ground Leakage Fault

Fault Manifestations: PowerFlex drive triggers F013 ground fault or F017 input phase loss alarm; induction motor hums loudly, overheats, and loses torque under load. Root Causes:

• Cracked, oil-corroded UVW power cables shorting to cabinet ground
• Loose L1/L2/L3 input power terminals causing unbalanced three-phase voltage
• Internal stator winding insulation breakdown from overheating or moisture corrosion Repair Steps:

1. Disconnect motor power cables one phase at a time to isolate leakage or open-circuit wiring faults.
2. Replace damaged double-shielded industrial power cables and rework cable insulation at drag-chain bend points.
3. Torque all input/output power terminals to Rockwell specified torque values and replace corroded cable lugs.
4. Test stator winding insulation resistance with a 500V megohmmeter; replace induction motors with resistance below 1MΩ.

4. Standard Professional Allen-Bradley Motor Repair Workflow

Follow this Rockwell official safety standardized troubleshooting sequence to avoid blind disassembly, permanent encoder position data loss, and secondary hardware damage:

1. Fault Record & Preliminary Classification: Log drive E/F fault codes, abnormal noise/vibration, motor surface temperature, and fault trigger operating conditions; separate thermal overload, encoder battery, mechanical bearing, and wiring communication fault categories.
2. Full LOTO Power-Off Visual Inspection: Cut total machine AC power, wait minimum 10 minutes for drive DC bus capacitors to fully discharge; inspect UVW power cables, MF feedback connectors, cooling fan integrity, shaft seal oil leakage, and dust buildup on motor housings.
3. Software Diagnostic Capture: Launch Studio 5000 or DriveExplorer software to read drive fault history logs, real-time motor temperature, encoder voltage, and RMS current waveform data; fully back up all PLC motion programs, axis offsets, and drive configuration parameters before hardware disassembly.
4. Isolation Cross-Test Verification: Decouple mechanical transmission to run motor no-load and separate mechanical load faults from motor body defects; swap confirmed intact feedback cables and encoder batteries to isolate wiring and power supply failures.
5. Targeted Parts Replacement & Calibration: Replace expired batteries, damaged DSL cables, worn bearings, or cooling fans with 100% genuine Allen-Bradley spare parts; re-calibrate motor auto-tune, servo loop gains, and full axis zero origin positions post-
6. Full Production Cycle Validation: Reconnect all wiring securely, restore machine power, complete axis homing, and run continuous automatic production cycles to confirm all fault codes, vibration, and positioning drift anomalies are fully eliminated.

5. Full-Cycle Preventive Maintenance Schedule for Allen-Bradley Motors

Scientific regular maintenance eliminates over 78% of sudden Rockwell motor drive alarms and extends bearing, encoder, cooling fan, and cable service life by more than 35%. This schedule complies with Rockwell environmental specifications (0–40°C rated ambient temperature, non-condensing humidity 5–95%)Rockwell A....

5.1 Daily Operator Routine Inspection

• Check drive HMI and PLC screen for active E/F fault codes and low absolute encoder battery warning reminders.
• Listen to servo and induction motor rotation sound for abnormal grinding, rattling, or buzzing noise.
• Touch motor housing exterior to monitor excessive overheating during continuous production shifts.
• Visually inspect UVW power and Hiperface DSL feedback cables inside drag chains for scratches, oil corrosion, and fatigue bending damage.
• Confirm no cutting fluid, metal filings, or oil mist accumulates on motor cooling vents and rear encoder housing.

5.2 Weekly Maintenance

• Wipe motor outer casing, encoder rear cover, and cooling air filters with dry lint-free cloth to maintain unobstructed cooling airflow.
• Tighten all UVW power terminal screws and MF feedback connector locking clamps to eliminate vibration-induced loose contact heat buildup.
• Reorganize drag chain wiring layout to separate high-power motor cables and low-signal DSL feedback cables for EMC anti-
• Clear debris blocking motor intake and exhaust cooling ventilation gaps.

5.3 Quarterly Deep Maintenance

• Power down the full automation system, blow motor cooling channels and encoder housing dust with low-pressure dry compressed air (avoid high-pressure air damaging delicate encoder optical components).
• Test absolute encoder backup battery voltage with a multimeter; pre-schedule replacement for low-voltage battery packs.
• Inspect motor shaft oil seals for coolant leakage; replace aged seals to prevent internal component corrosion.
• Fully back up all Studio 5000 motion parameters, workpiece offsets, and fault history logs to external PC storage.
• Verify cabinet protective grounding continuity to maintain earth ground impedance below 5 ohms for EMI noise suppression.

5.4 Annual Professional Complete Overhaul

• Uniformly replace absolute encoder lithium backup batteries every 12–24 months to prevent unplanned position data loss.
• Disassemble motor front/rear end caps, inspect bearing wear; install genuine bearing overhaul kits after 20,000+ operating hours.
• Replace flexible Hiperface DSL drag-chain feedback cables prone to repeated bending fatigue failure.
• Thoroughly clean encoder optical disk surfaces of oil sludge and metal particulate contamination.
• Update Kinetix/PowerFlex drive firmware to the latest Rockwell official compatible versions to resolve known system software bugs.
• Complete full motor auto-tune and re-calibrate all thermal protection, current limit, and motion loop gain parameters.
• Relubricate motor bearings per Rockwell published interval charts based on motor RPM and operating environment severityRockwell A....

5.5 Long-Term Idle Storage Maintenance

Store unused Allen-Bradley Kinetix servo and induction motors in dry, dust-free, constant-temperature warehouses free of corrosive coolant vapor. Power on the matching drive system and run each motor at low speed for 20 minutes every month to prevent encoder battery self-discharge and circuit board moisture corrosion. Do not stack heavy objects on the motor rear encoder housing to avoid optical disk deformation and permanent feedback damage.

6. Clear Distinction: Allen-Bradley Motor Hardware Fault vs Mechanical Axis Load Fault vs Drive Parameter Configuration Fault

Accurate fault classification drastically cuts maintenance labor downtime; compare core distinguishing characteristics below:

Allen-Bradley Motor Hardware Fault Features

• Fixed E/F numeric fault codes display on the drive HMI even after fully disconnecting mechanical coupling from the motor shaft.
• Visible physical hardware damage: worn bearings, leaking shaft seals, cracked feedback cables, seized cooling fans, degraded stator insulation.
• Faults cannot be eliminated by adjusting motion acceleration/deceleration, motor current, or torque limit parameters in Studio 5000.

Mechanical Axis Load Fault Features

• No persistent drive fault codes appear during motor no-load testing; E/F trip alarms only activate after reconnecting ball screws, couplings, and production payloads.
• Obvious mechanical binding, tight linear guides, or excessive workpiece weight creates sustained motor overload and overheating.
• Abnormal vibration and grinding noise disappear instantly after decoupling the motor from the transmission mechanism.

Drive & PLC Parameter Configuration Fault Features

• Motor hardware operates normally without overheating, noise, or visible physical damage.
• Alarms only trigger under specific production cycle speed, feed rate, or heavy payload operating conditions.
• Faults vanish immediately after correcting motor rated current, auto-tune inertia values, or acceleration ramp motion parameters.

Conclusion

Allen-Bradley Kinetix servo and NEMA induction motors are high-reliability core motion components for industrial automation production lines, yet most daily drive trip faults such as motor overtemperature, encoder feedback loss, overload, and bearing vibration originate from neglected cooling cleaning, expired consumable spare parts, loose wiring terminals, and mismatched drive configuration parameters — not manufacturing quality defects. Mastering drive E/F fault code diagnosis, no-load isolation cross-test methods, and tiered daily/quarterly/annual maintenance schedules can drastically reduce factory unplanned production downtime and overall equipment maintenance labor costs.
