Siemens Inverter Troubleshooting: Fault Diagnosis, Alarm Codes, Repair & Maintenance Guide

Siemens inverters (VFDs) are the backbone of industrial automation—powering CNC machines, conveyor systems, pumps, fans, and robotics worldwide. Renowned for high efficiency, precise speed control, and rugged reliability, they optimize motor performance and energy usage across manufacturing, logistics, and processing industries.

Even the most durable Siemens VFDs (e.g., MM420/430/440, G120, G130, S120 series) face common issues: sudden shutdowns, alarm codes, overheating, or motor speed fluctuations. Over 70% of unplanned downtime stems from misdiagnosed faults, neglected maintenance, or wiring errors—not hardware failure. This guide equips global maintenance teams and equipment owners to accurately diagnose faults, resolve critical alarms, perform safe repairs, and implement preventive maintenance for Siemens inverters.

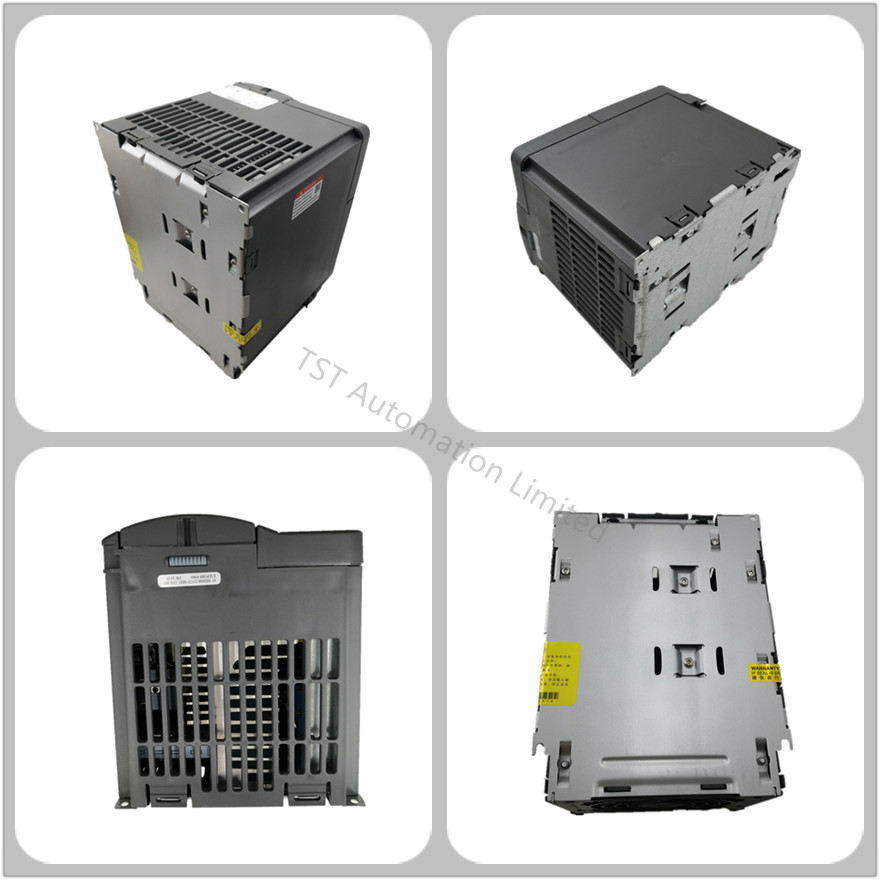

1. Core Role & Working Principle of Siemens Inverters

A Siemens inverter acts as a power conversion and control hub between the AC power supply and the motor. Its core job: convert fixed-frequency AC input into variable-frequency, variable-voltage AC output to regulate motor speed, torque, and direction with precision.

Key components and their roles:

• Rectifier Unit: Converts AC power to DC (stored in the DC bus capacitor).
• DC Bus: Stabilizes DC voltage; critical for avoiding overvoltage/undervoltage faults.
• IGBT Inverter Module: Converts DC back to variable AC; prone to overcurrent damage.
• Control Panel & Sensors: Monitors voltage, current, temperature, and communication signals; triggers alarms for anomalies.
• Cooling System (Fan/Heat Sink): Dissipates heat—overheating is the #1 cause of premature failure.

[Internal Link Suggestion: Insert link to Original Siemens Inverter Product Page (MM4/G120/S120 Series)]

2. How to Accurately Diagnose Siemens Inverter Faults (Step-by-Step)

Siemens VFDs display two types of alerts:

Faults (Fxxxx): Critical issues that stop the inverter (e.g., F0001 overcurrent). Require reset after fixing.

Alarms (Axxxx): Warnings that let operation continue (e.g., A0504 overheating). Demand prompt attention.

Follow this 4-step diagnosis to avoid misrepair:

Step 1: Observe Operational Symptoms

• Sudden shutdown + F-code: Electrical fault (overcurrent/overvoltage/undervoltage).
• Intermittent alarms + overheating: Dust-clogged heat sink, faulty fan, or high ambient temperature.
• Motor runs but speed fluctuates: Encoder signal loss, loose wiring, or parameter mismatch.
• No display: Power supply failure, blown fuse, or internal circuit damage.

Step 2: Check Common Alarm/Fault Codes (Critical Reference)

Siemens uses standardized codes for fast troubleshooting. Below are the most frequent industrial alarms and root causes:

F0001 Overcurrent: Motor short/ground fault, IGBT damage, too short acceleration time, motor jam

F0002 Overvoltage: Too short deceleration time, faulty braking resistor, high input voltage

F0003 Undervoltage: Power phase loss, DC bus capacitor aging, unstable input power

F0004 Overtemperature: Fan failure, clogged heat sink, ambient temperature over 40°C, long-term overload

F0070 Communication Error: Loose Profinet/DP cable, PLC offline, damaged shielding wire

A0504 Inverter Overheating Alarm: Dust accumulation, fan aging, poor ventilation

A0590 Encoder Signal Loss: Loose encoder wiring, damaged sensor, parameter mismatch

Step 3: Visual & Wiring Inspection (Quick Wins)

• Check L1/L2/L3 input and U/V/W motor terminals for loose connections, oxidation, or burn marks.
• Inspect cables for cuts, oil corrosion, or EMI interference; separate power and control cables properly.
• Check cooling fan operation and clean heat sink fins of dust and debris.
• Confirm ambient temperature is between 0–40°C with good ventilation.

Step 4: Parameter & Component Testing

• Verify motor parameters match the motor nameplate rated current and voltage.
• Disconnect motor wires for no-load testing to judge internal inverter failure.
• Test DC bus voltage to confirm capacitor working condition.

[Internal Link Suggestion: Insert link to Siemens Inverter Fault Spare Parts Page (IGBT, Fan, Capacitor)]

3. Common Causes of Siemens Inverter Failures

Most Siemens inverter faults are preventable and caused by daily operating environment issues rather than quality defects:

• Thermal Stress: Dust blockage, fan aging, and high temperature cause overheating and accelerate component aging.
• Electrical Overload: Motor short circuit, mechanical jamming, and unreasonable acceleration parameters trigger overcurrent damage.
• DC Bus Aging: Capacitor attenuation and bulging lead to unstable voltage and frequent voltage alarms.
• Signal Interference: Poor shielding and messy wiring cause communication and encoder signal errors.
• Insufficient Maintenance: Long-term no cleaning and no parameter backup lead to recurring random faults.

4. Professional Repair Solutions for Top Siemens Inverter Faults

4.1 F0001 Overcurrent (Most Common Fault)

Symptoms: Inverter shuts down during startup or acceleration; motor cannot run normally.

Repair Steps: Disconnect the motor to test no-load status; check motor insulation and mechanical jamming; extend acceleration time; replace damaged IGBT modules if internal failure is confirmed.

4.2 F0002 Overvoltage

Symptoms: Alarm occurs during motor deceleration and stopping.

Repair Steps: Extend deceleration time; inspect and replace aging braking resistors; stabilize input power voltage.

4.3 F0004 Overtemperature

Symptoms: High inverter temperature, continuous overheating alarm, automatic shutdown.

Repair Steps: Clean heat sink dust; replace stuck or aging cooling fans; improve equipment ventilation environment.

4.4 A0590 Encoder Signal Loss

Symptoms: Unstable motor speed and positioning deviation.

Repair Steps: Check encoder wiring and shielding; recalibrate control parameters; replace faulty encoder with original compatible parts.

[Internal Link Suggestion: Insert link to Wholesale Original Siemens Inverter Accessories (Fans, Capacitors, Encoders)]

5. Standard Daily & Preventive Maintenance for Siemens Inverters

Scientific maintenance can reduce 80% of common faults and greatly extend VFD service life.

Daily Inspection

Check alarm records, fan operation noise, and equipment temperature; confirm no burning smell or abnormal vibration.

Weekly Maintenance

Clean surface dust and air filter; check and tighten all power and control terminals.

Quarterly Maintenance

Deep clean internal heat sink and circuit board dust; check DC bus capacitors for bulging and leakage; back up all system parameters.

Annual Professional Maintenance

Test capacitor performance and IGBT module status; calibrate system sensors; upgrade firmware and eliminate potential hidden troubles.

Long-term Storage Maintenance

Store in dry and dust-free environment; power on and run for 15 minutes monthly to prevent component moisture and capacitor failure.

6. How to Distinguish Inverter Fault vs. Motor Fault

Inverter Fault Features: The motor runs normally when directly connected to AC power; the inverter displays clear F/A error codes; faults are related to electricity, temperature and signals.

Motor Fault Features: Abnormal noise, jitter and overheating exist all the time; no obvious inverter alarm; mechanical jamming or coil aging causes failure.
